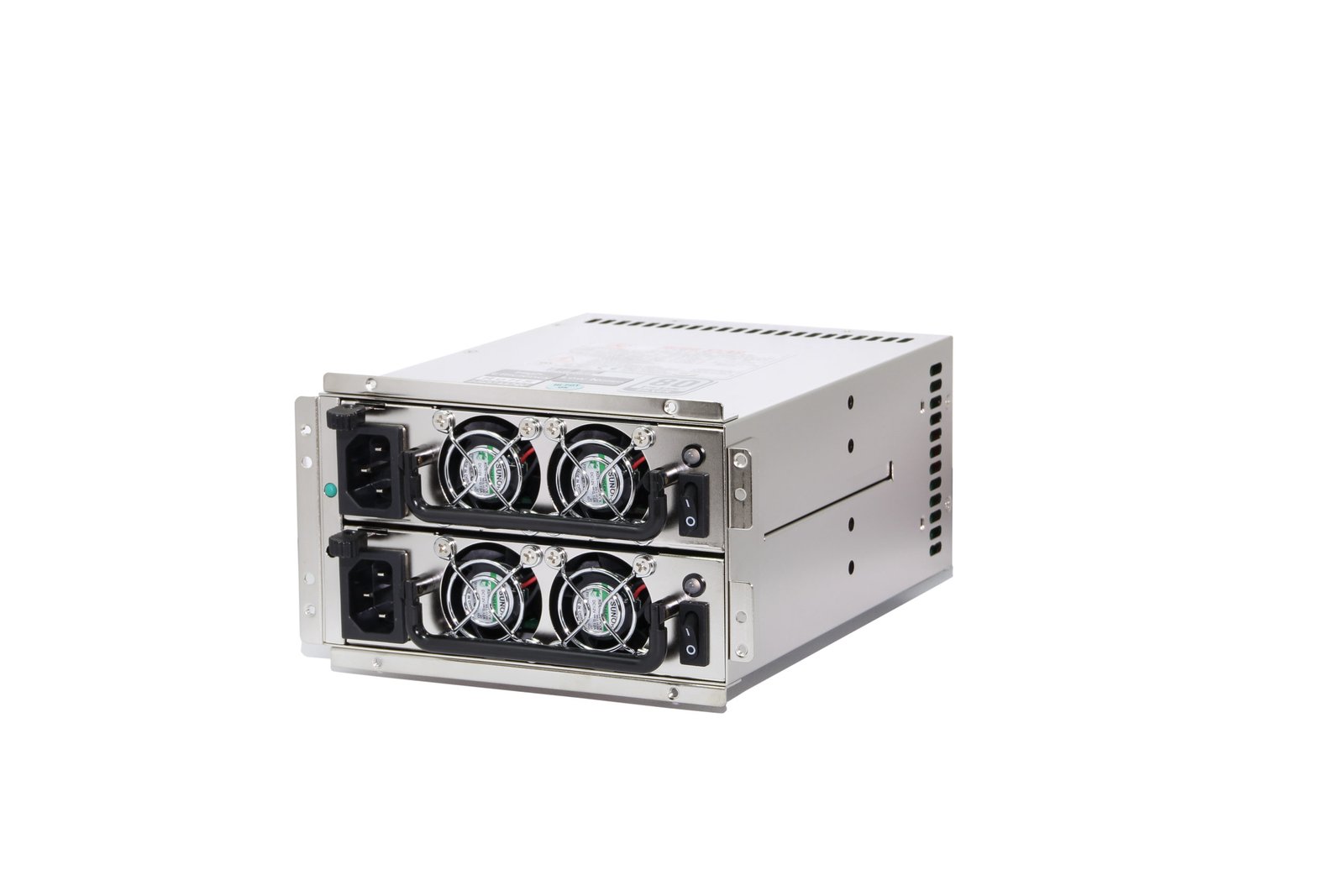

Mini Redundant Power Supply 600W R4B-600G1V2 Product Description
The Mini Redundant Power Supply 600W R4B-600G1V2 includes hot-swap and power sharing functions. The mini redundant power supply is ideal for telecommunications and industrial systems.
AC Input
Input voltage: 100 ~ 240V (+-/10%) [ HOT-SWAP SOLUTION]
Frequency: 50/60Hz.
Power Factor Correction.
Function
Power Good Signal: 100ms~500ms, TTL compatible signal
Power Fail Delay: >1msec. ,TTL compatible signal
PS-ON: Power off:PS-ON = 2V min. ;Power on:PS-ON = 0.8V max.
Environmental
Operating Temperature: 0˚C to 45˚C
Storage Temperature: -20˚C to +70˚C
Operating Humidity: 20% to 90%,non-condensing
Storage Humidity: 5% to 95%, non-condensing
Safety & EMI/RFI
Safety Standards: UL,cUL,TUV,CB
EMI/RFI Standards: CISPR22(EN55022) Class A, FCC Part15 Class A
Others
MTBF: 100,000 hours
Coolings: 38x38x28mmx6 DC FANS
Dimension(DxWxH): 199 x 150 x 86
DC Output
| Output Voltage | +5V DC | +12V DC | +3.3V DC | -12V DC | +5VSB |
|---|---|---|---|---|---|
| Output Current(Max) | 25A | 49A | 25A | 0.8A | 3.5A |
| Output Current(Min.) | 1A | 3A | 1A | 0A | 0.1A |
| Ripple/Noise Max.(P-P): | 50mv | 70mv | 50mv | 70mv | 50mV |
| Line Regulation: | ±1﹪ | ±1﹪ | ±1﹪ | ±1﹪ | ±1﹪ |
| Load Regulation: | ±5﹪ | ±5﹪ | ±5﹪ | ±5﹪ | ±5﹪ |
The combined total power from +5V and +3.3V shall not exceed 150W.
The combined total power from +5V and +12V & +3.3V shall not exceed 575W
 |
 |
 |
 |
 |
 |
 |
| 20+4 Pin | P4 MB | Peripheral | FDD | 8-Pin | 6-Pin | SATA |
| X 1 | X 1 | X 9 | X 1 | X 1 | X 1 | X 4 |
